Specifications

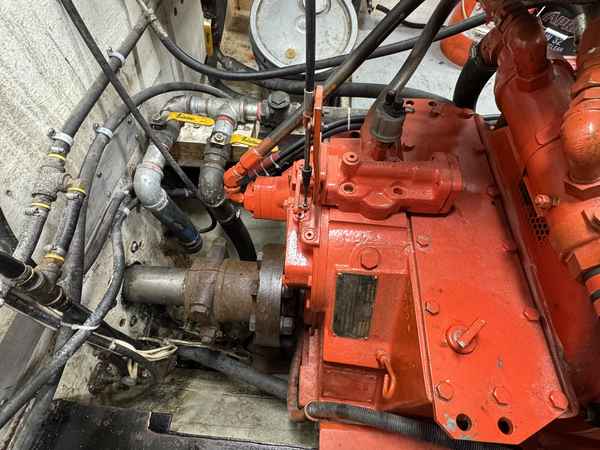

2012 Reduction was rebuilt with engine in 2025

mg- 5114 dc

Ratio 4.17:1

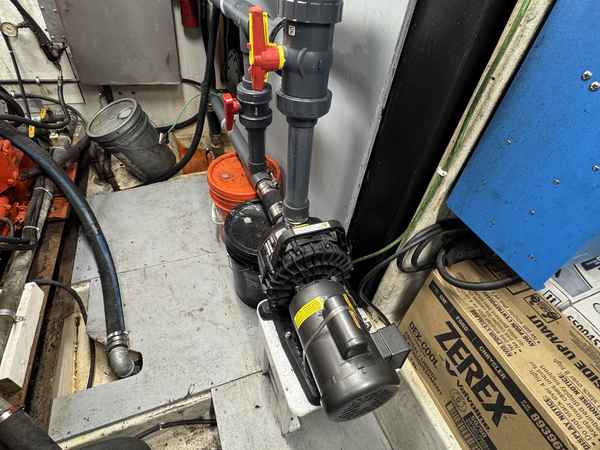

Propulsion: 4” Stainless Steel Shaft Fuel Tanks: 2 x 600-gallon & 2 x 525-gallon steel/painted Wiring & Electrical System: 12/24/120 Volts Pumping System: 4 x 3700 g.p.m. rules, 1:50”Jabsco, & submersible emergency Accommodations/Domestic Services: Appears comfortable & functional

Safety Equipment

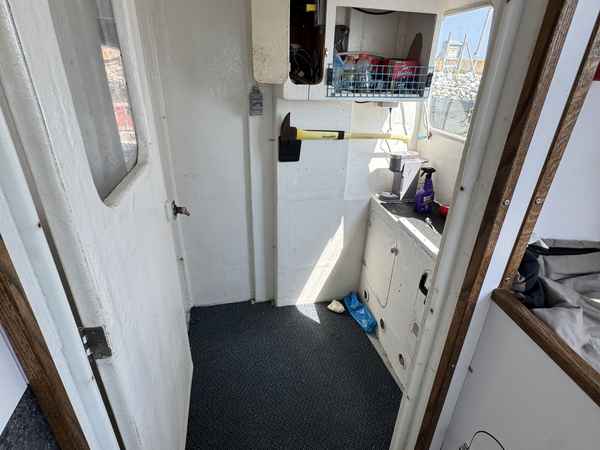

6-person life raft (Fitzwright) top of wheelhouse. 125 lbs. anchor Electric horn operational time of survey, Navigation lights operational & fitted time of survey, Perko spot/search light top of wheelhouse 51” & 41”LED bar wheelhouse & other LED lights stationed throughout vessel as required. Approved flares – Expiry date 2028 & Commet flares in life raft, 6 life jackets & 6 PFD’S, 2 life rings, 7 survival suites – Inspected Yearly Safety harness, boarding ladder, buckets, ax, first aid kit, radar reflector, & others ACER EPIRB – Inspected & battery replaced as required 2024 CSI Comments: Safety equipment appears adequate.

Fire Equipment 5 lbs. dry chemical fire extinguishers in forecastle & wheelhouse, 2 x 100 lbs. CO2 System in the wheelhouse. CO2 system piped to engine room.

Electronics

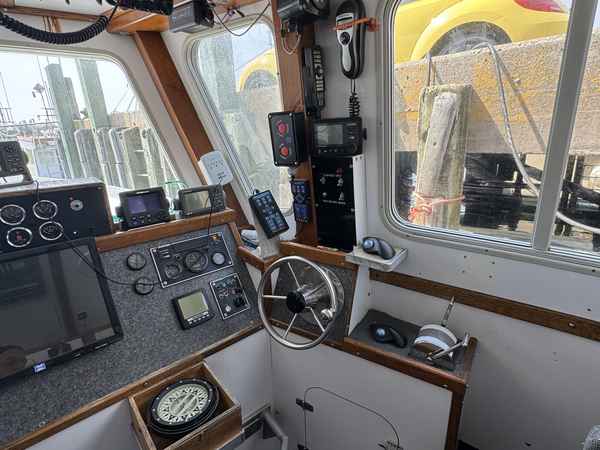

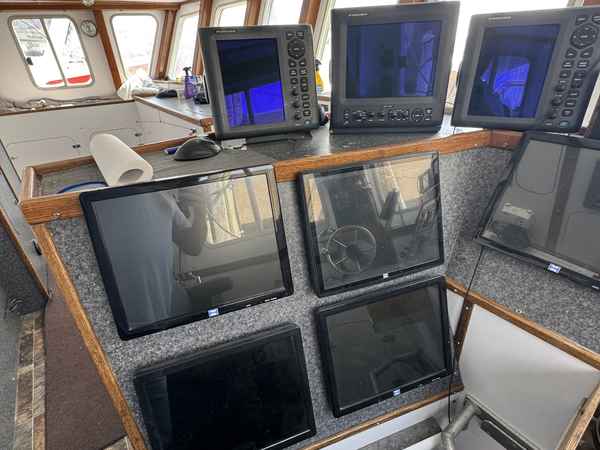

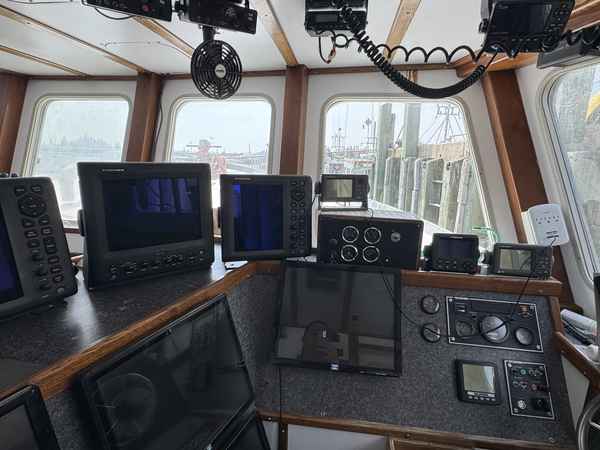

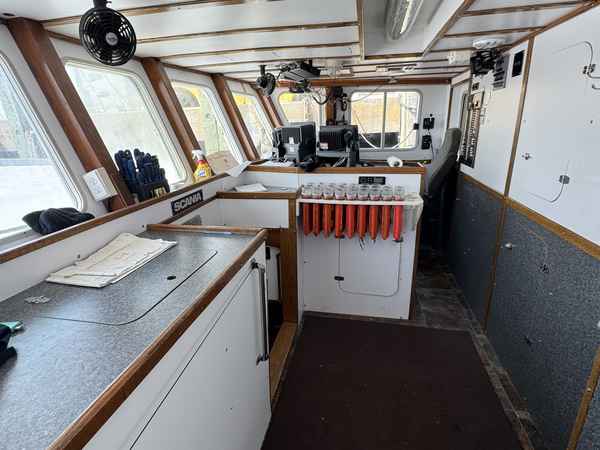

Dirigo Boxed Compass Furuno 0735 Satellite Compass & GPS, Furuno 1935 RDP – 152 Display, 12 – 24 VDC Radar, Furuno 1945 RDP – 152 Display 12 – 24 VDC Radar, Furuno LCD FCV – 1150 Display Unit CV – 1150, Sounder, Furuno Navigator, GP – 33 GPS, Furuno NAV TEX NX – 300 Weather & GPS Icom IC – M510, VHF Distress & Shakespeare Big Stick Aerial, Icom IC – F5061 VHF Shakespeare Big Stick Aerial, Hondex 7302 II – BB Plotter – MS Monitor Hines Marine, Olex MS Monitor Hines Marine, Time O MAX SEA (2) MS Monitors, Icom Class B AIS Transponder MA – 510 TR AIS – AIS Beacons, Com Nav Commander Auto Pilot, Com Nav P Series SPU- & Com Nav Rudder Indicator, Com Nav 203 FFU Remote Wheelhouse & Com Nav 203 FFU Remote & Steering Facilities Fusion MS – RA70NSX, XM Satellite Stereo System, Cell Booster, CLS TRITON Black Box Mark Track MS Easy Button, (2) ATA MS Temperature Alarm, Galaxy Camera MS Monitor External Interface Box Icom, CT – M500 Hayler System, Starlink, Fluid T V

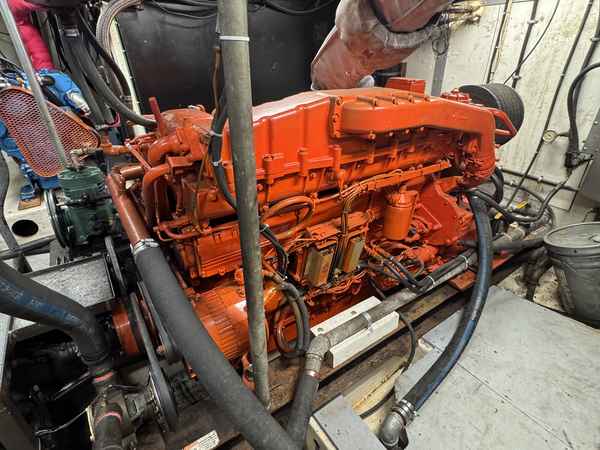

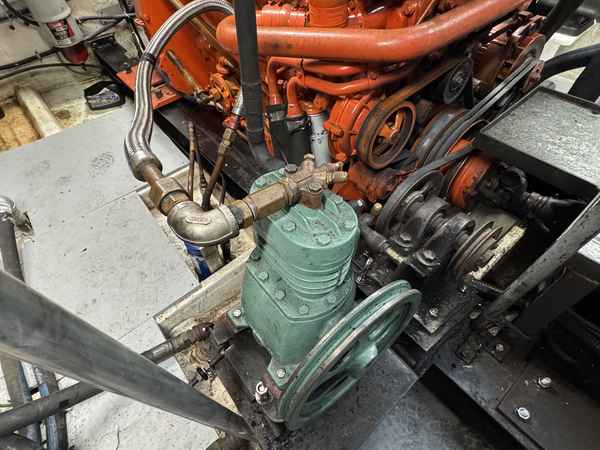

Engine

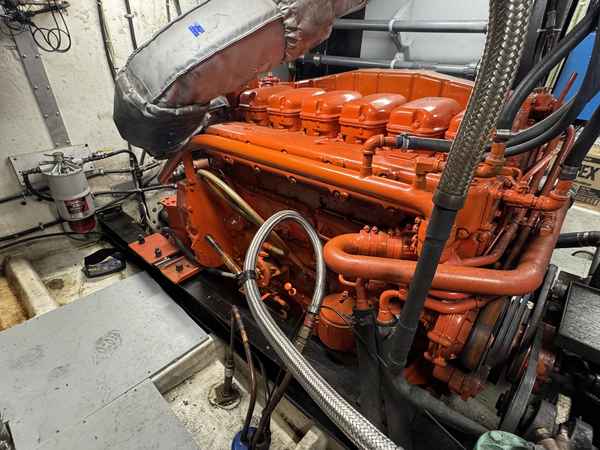

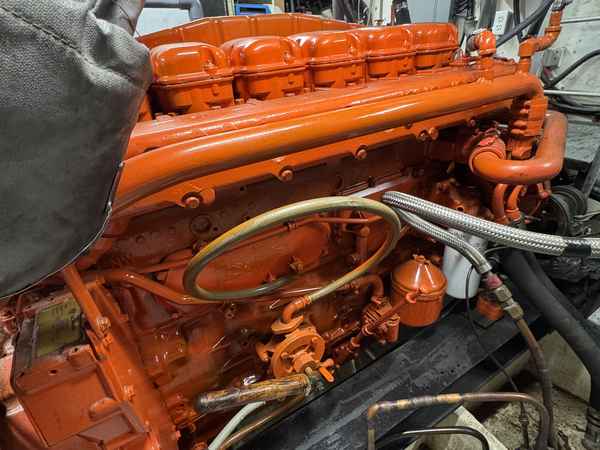

Rebuilt in 2025 Scania with 1500 hours

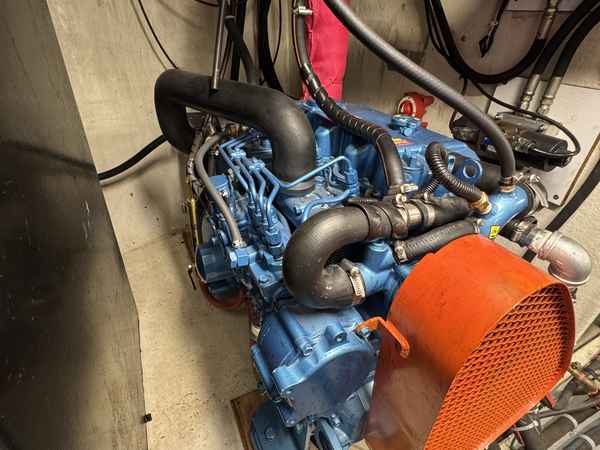

Genset 24.9 kw

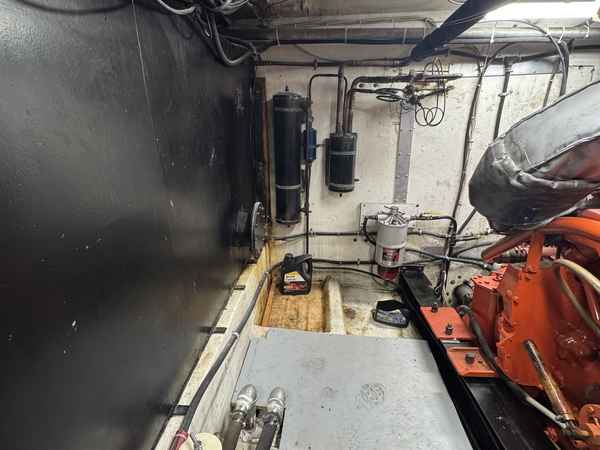

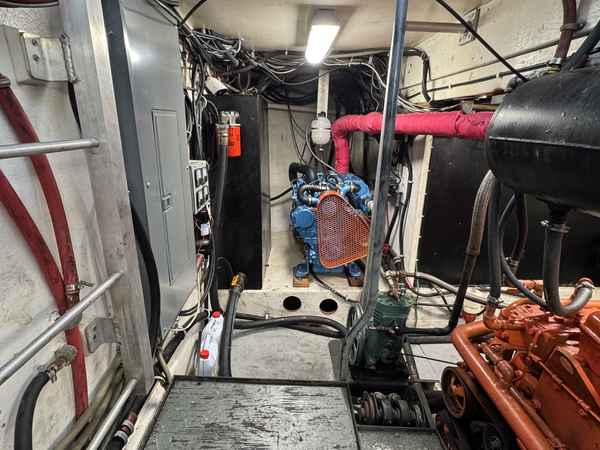

Engine oil changed 250 hours, Comments: Engine has an alarm system installed in wheelhouse to monitor oil pressure, voltage, temperature, and water temperature, Engine room organized, vented, no unnecessary equipment/material stored, Exhaust system well wrapped, with no evidence of heat buildup, Engine serviced by licensed mechanic as required. Cooling System: 2” Galvanized Pipes – 2024 Inspected/replaces as required CSI

Cuddy

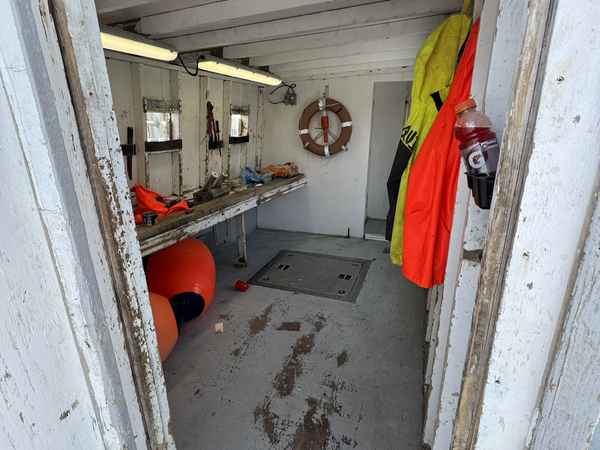

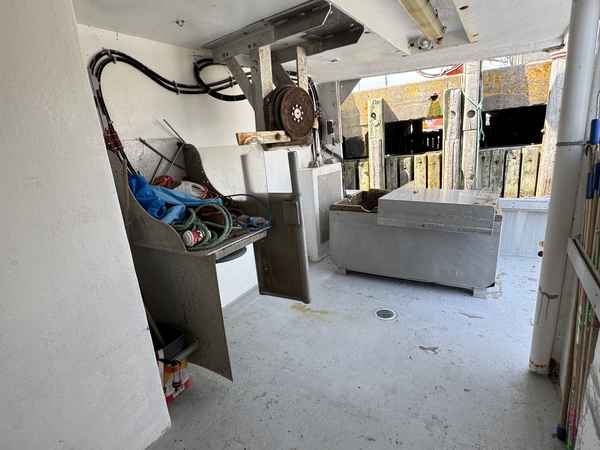

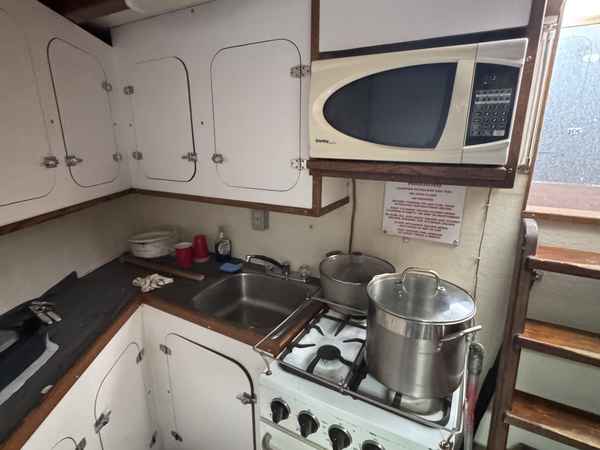

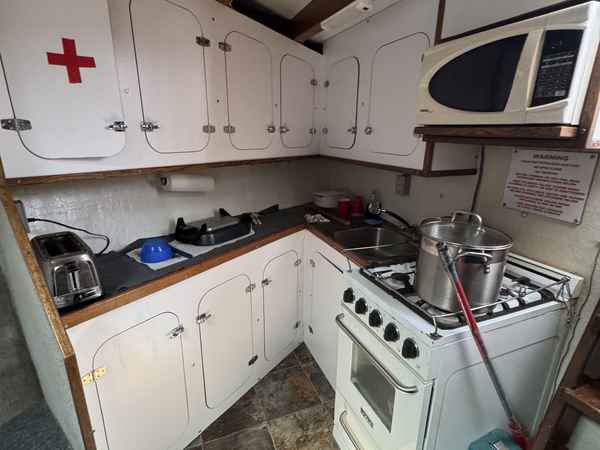

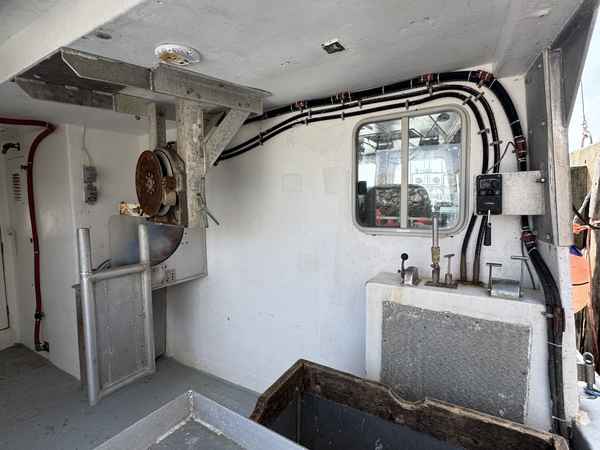

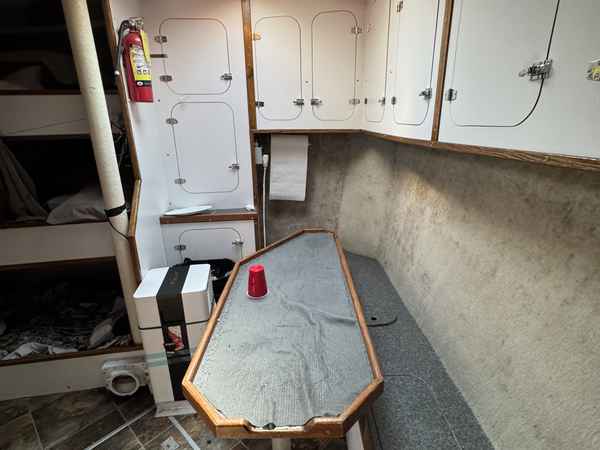

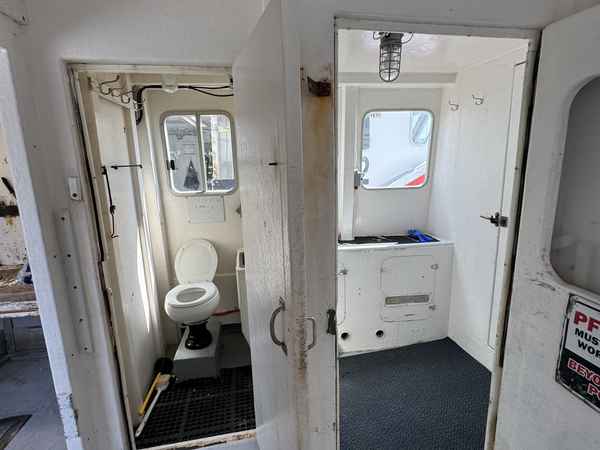

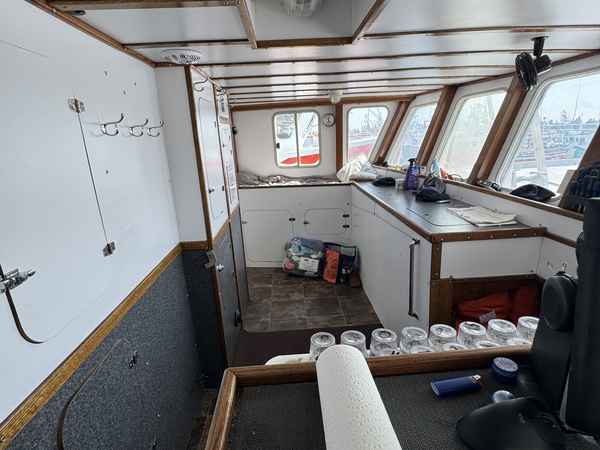

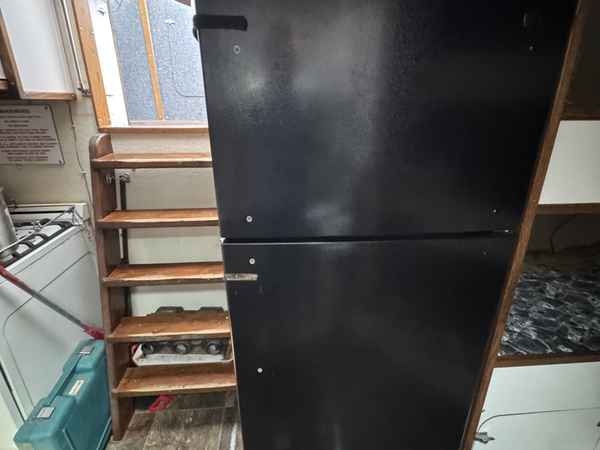

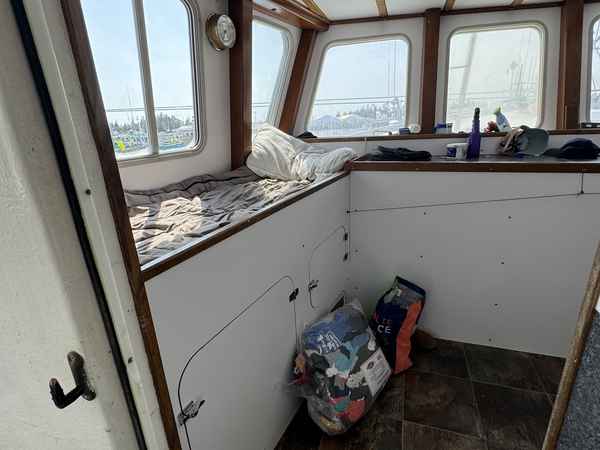

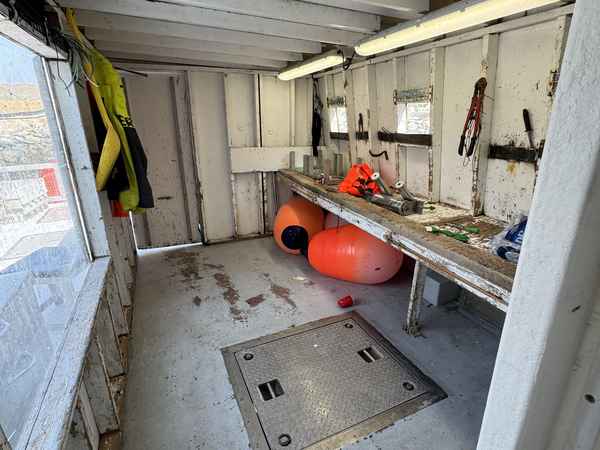

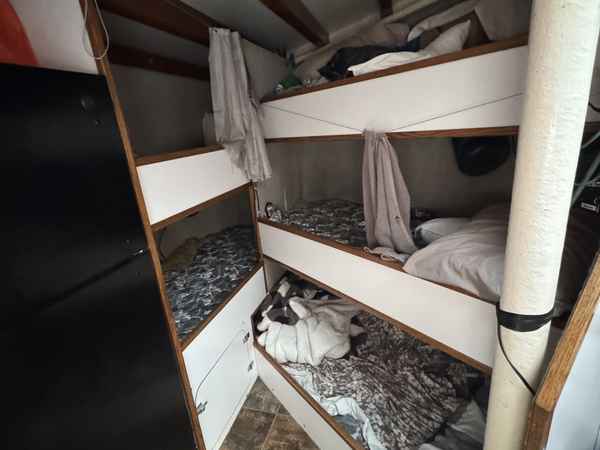

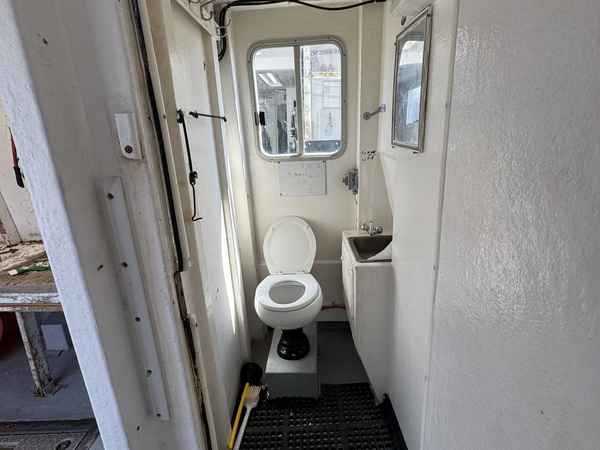

Galley in forecastle with cupboards, lockers, table, sink, countertop, & appliances Appliances: Unique 4 burner propane stove/oven, Danby microwave Refrigerator, Keurig coffee pot & other small appliances Forecastle: 5 bunks, Storage units under bunks & bow Bomar escape hatch, Fresh water tank, Air Vent Wheelhouse: Captain bunk Storage units Slaughterhouse: Washroom/shower facilities, port Crew Station Bait shed & storage port – Aft slaughterhouse Heating System: Bus heaters throughout vessel as required Propane System: Propane tanks in protective box top of wheelhouse Electro gas alert forecastle

Boat General

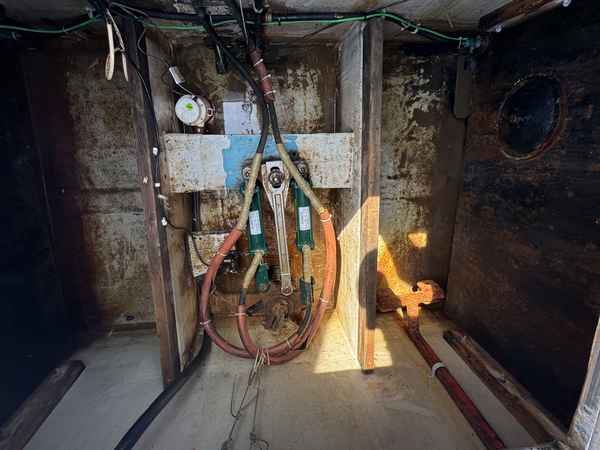

4” Stainless Steel Shaft Dripless Cutlass Bearing, Fiberglass Stern Tube, 2 Bronze Steady Bearings – 2024 Replaced 4 Blade Propeller, Galvanized Propeller Cage, Double Ram – 2024, New pistons & T Bar Steel with Stainless Steel Rudder Stock, Hydro T Steering (Hydro Slave) Steering Gear Comments: Appears in good condition, no visible evidence of leaks identified .

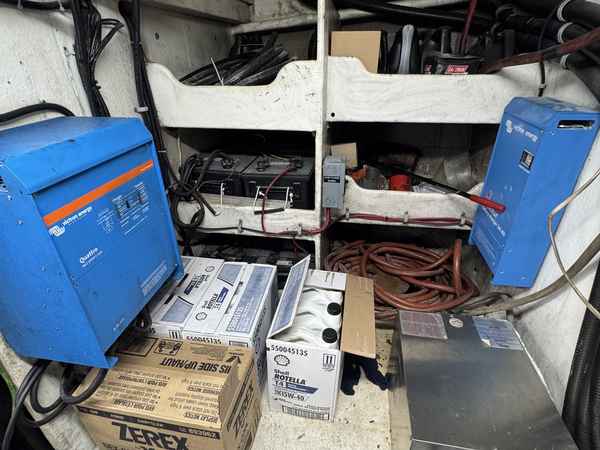

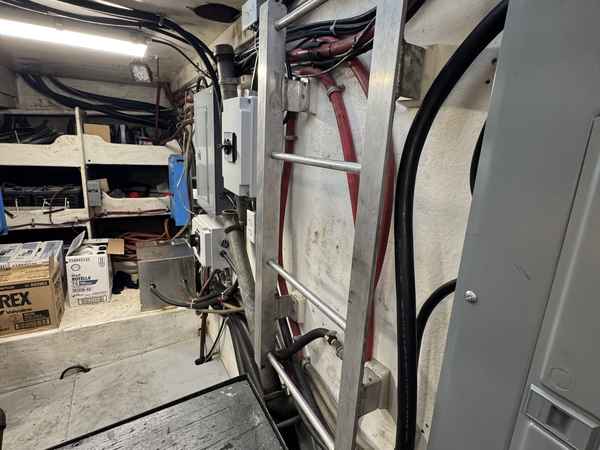

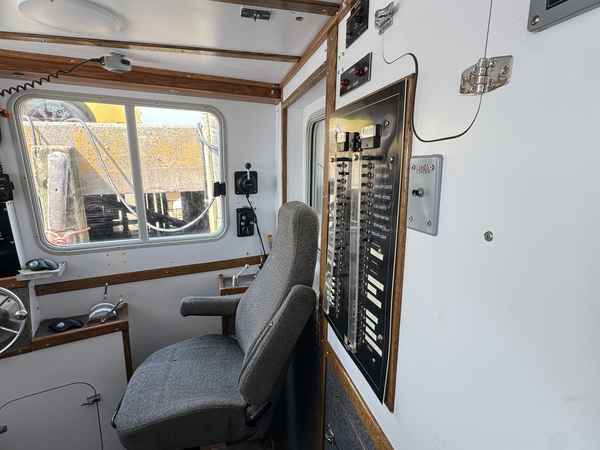

12/24/120 Volts 24 V/5000 VA/120 AMPS Phoenix Victron Energy Inverter/Battery Charger. 24 V/40 AMPS Centaur Victron Energy Battery Charger 2 Converters – Due to method of installation could not note model 4 Large Marine Batteries 2024: One bank replaced Marine Grade Wiring 12/24-volt panel & 24/32-volt navigation panel in wheelhouse 24 V QO Load Center Distribution System Shore power hookup Special Electrical Equipment: Inverters, converter, water pumps, electronics, & others
