Specifications

marine Gear

Make 2017 Rebuilt Twin Disc

Model MG - 5114

Ratio 4:5 - 1

Comments: Reduction appears adequate for engine. Oil changed yearly

Marine gear is serviced by licensed mechanic as required

2017: Rebuilt @ $25,000.00

ropulsion

4” Stainless Steel Shaft

Inside Standard Rubber Cutlass Bearing

Fiberglass Stern Tube

Bronze Steady Bearing

4 Blade Propeller 48” x 45”

Galvanized Propeller Cage

Double Ram

Steel with Stainless Steel Rudder Stock

Hydro T Steering (Hydro Slave) Steering Gear

Comments: Propulsion appears in good condition, visible evidence of leaks identified

Could not inspect underwater gear due to vessel being afloat

2022: Shaft pulled, inspected with any needed repairs completed (CSI)

Could not inspect due to buildup of ice/snow on deck

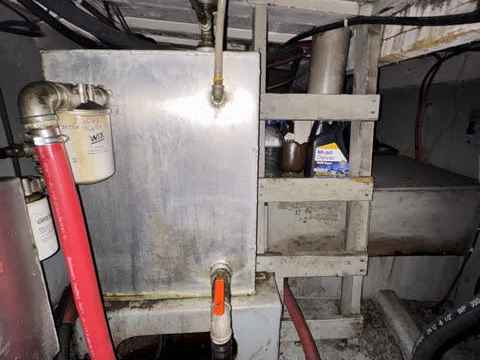

Fuel Tanks

2 x 250-gallon stainless steel tanks located in fuel tank lazarette

2 x 250-gallon stainless steel tanks located in engine room

High Pressure Rubber Piping

Shut Off located on the tanks & racor (Emergency Wheelhouse)

Racor water/fuel separators changed every oil change or as required

Safety Equipment

4 & 6-person life raft located on top of wheelhouse (Expiry date Feb 2023)

150 lb. anchor

Manual (air) horn located in wheelhouse

Navigation lights were operational & fitted at time of survey

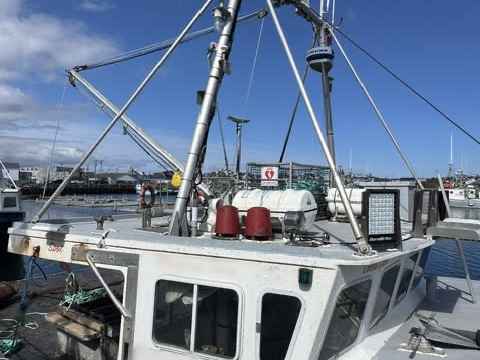

Marine spot/search light located on top of wheelhouse

LED lights stationed throughout vessel as required

Approved flares (Expiry date 2026)

5 life jackets & 6 PFD’S

2 life rings

5 survival suites

Safety harness, boarding ladder, buckets, ax, first aid kit, radar reflector, & others

EPIRB

C02

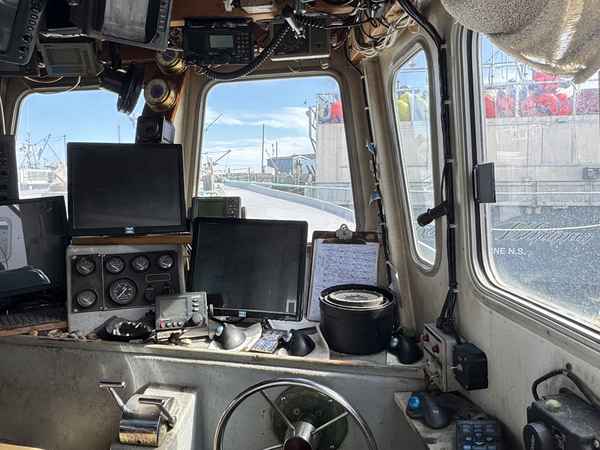

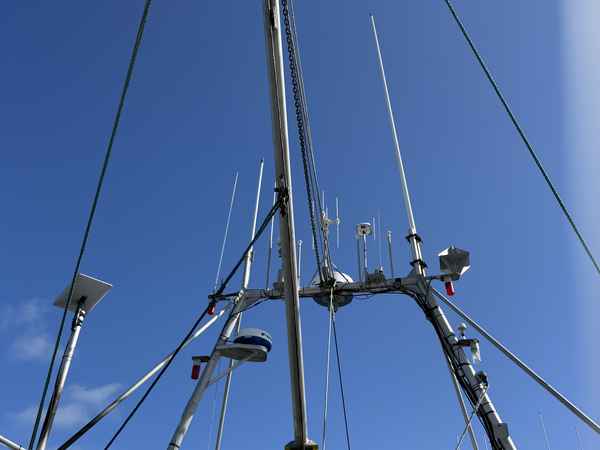

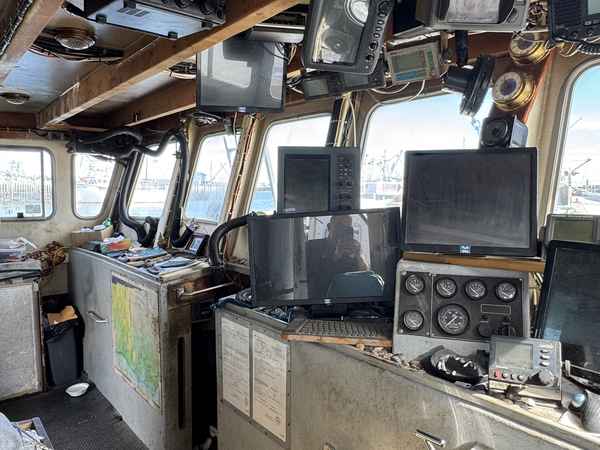

Electronics

Dirigo Boxed Compass

Furuno 1731 Radar

Koden CVS – 84151 Sounder

Furuno GPS/WAAS Navigator GP – 32 GPS

Furuno GPS/WAAS Navigator GP – 32 GPS

Koden KGP – 97 Navigator GPS

Furuno Rd – 30 GPS

Icom IC – M 506 VHF

Icom IC – 601 VHF (Distress & Big Stick)

Icom IC – M710 SSB

Icom Automatic Antenna Tuner

Furuno DFAX 207 Weather Fax

Hines Marine Olex (MS Monitor)

Hines Marine MAX SEA (MS Monitor)

Nobel Teck (MS Monitor)

Nauticast Class B Transponder AIS

Com Nav Commander Auto Pilot (Commander P2 Computer)

Kenwood KMR Stereo System (Speakers)

Si Tex 525ADF Direction Finder

TRITON Black Box

Hines Marine Camera System (MS Monitor – 4 Location)

4 durabrites 2 small durabrites

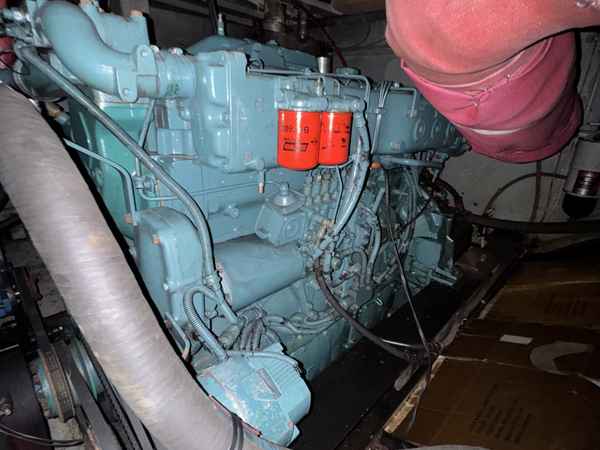

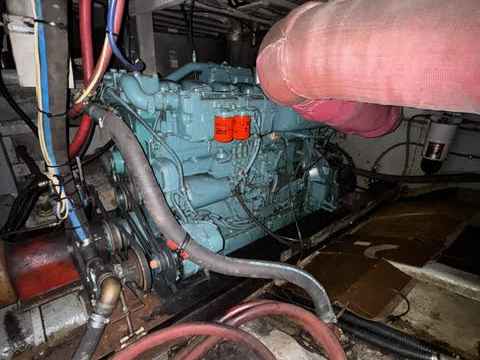

Engine

Engine Description

Make 2017 Rebuilt Volvo Penta Turbo Charge Diesel

Model TAMD 122A

Horsepower 430 HP @ 1800 RPM’S

Engine Hours 7190 Hours’ Time of Survey

Cooling System 2” Galvanized Pipes

Exhaust Steel/Stainless Steel Muffler

History: Engine oil changed every 250 hours

Comments: Engine has an alarm system installed in wheelhouse to monitor oil pressure,

voltage, temperature, and water temperature

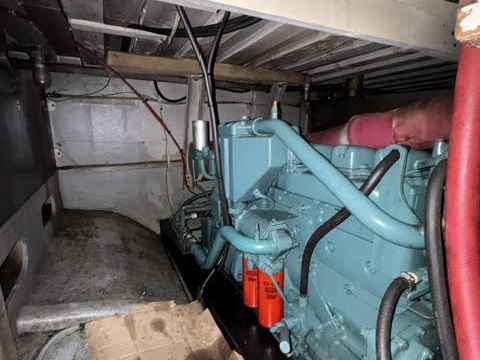

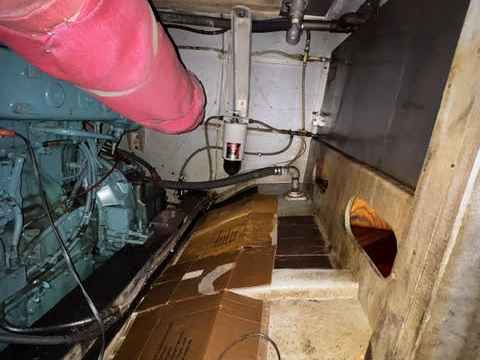

Engine room well organized, no unnecessary equipment/material stored

Engine room well vented with natural draught & systems

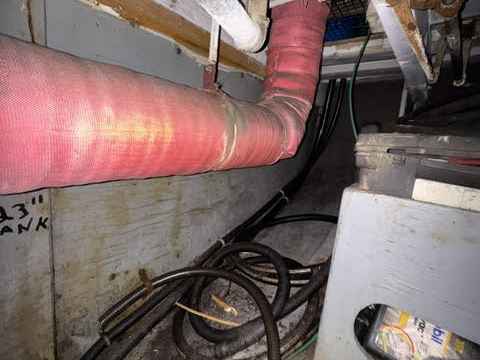

Exhaust system well wrapped, with no evidence of heat buildup

Engine is serviced by licensed mechanic as required

2017: Rebuilt @ $50,000.00

Cuddy

Accommodation/Domestic Services

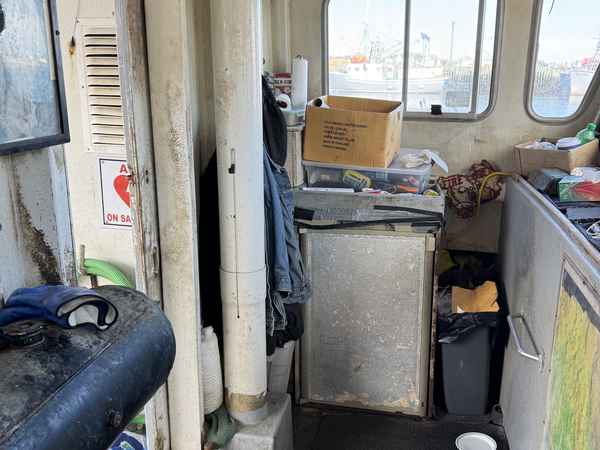

Galley located in forecastle with cupboards, lockers, sink, & side table

Appliances: 4 burner propane stove/oven

Danby Microwave – Refrigerator - Keurig coffee maker

Forecastle: 4 bunks

Bomar escape

Lights & plug outlets.

Heating System: Bus heaters located in forecastle & wheelhouse

Propane System: Propane tanks located in protective box on top of wheelhouse

Electro gas alert system

Comments: Accommodations appear comfortable & functional
