Specifications

• Twin Disc
• 3 : 1
• 2 x 200-gallon black steel tanks in engine room
• 2 x 200-gallon black steel tanks in steering lazarette
• 3700 g.p.m. rules in engine room, fish hold & 2000 g.p.m. in steering lazarette
• 1:50 “Jabsco bilge & or wash down

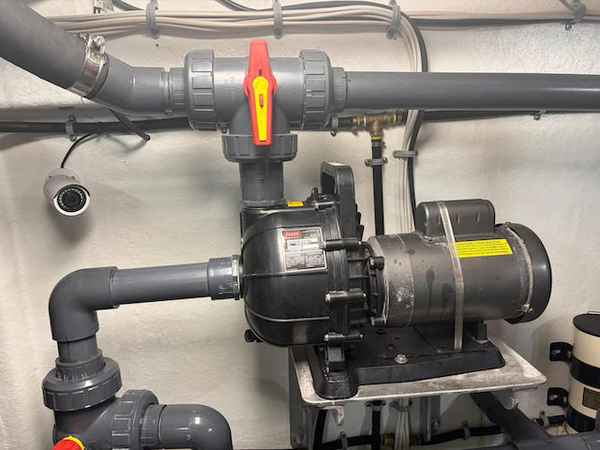

• 2 HP Pacer SE2CBGI.C – Model 354443

Safety Equipment

• 6-person life raft (Zodiac) top of wheelhouse (Expiry date June 2026)
• 100 lb. anchor
• Electric horn, operational time of survey
• Navigation lights operational & fitted time of survey
• Marine spot/search light top of wheelhouse
• LED lights stationed throughout vessel as required
• Approved flares – Expiry date 2027
• 4 life jackets & 5 PFD’S
• 1 life ring
• 4 survival suits
• Safety harness, boarding ladder, buckets, ax, first aid kit, radar reflector, & others
• Ocean Signal EPIRB
• 5 lbs. dry chemical fire extinguishers in forecastle & wheelhouse
• 2 x 50 lbs. CO2 System in wheelhouse. CO2 system piped to engine room

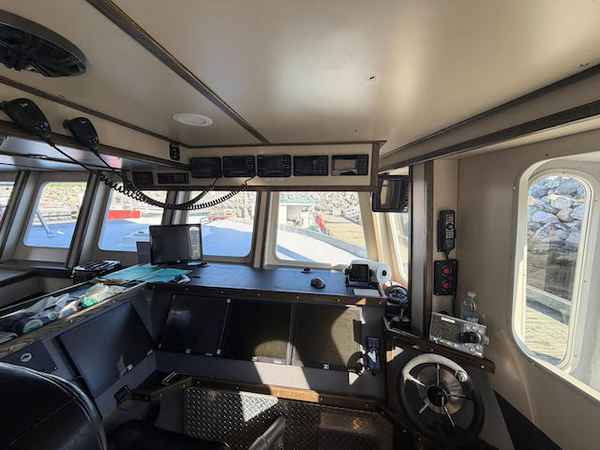

Electronics

• Ritchie Power Damp Boxed Compass
• Furuno 1835 24 Mile
• 72 Mile Radar Built in Time O System
• Furuno Bottom Discrimination BBDS1 Sounder MS Monitor
• Furuno GP – 39 GPS
• Furuno GP – 39 GPS
• Icom IC – M510 VHF – Distress & 471 Shakespeare Big Stick Aerial
• Icom IC – M510 VHF – Distress & 471 Shakespeare Big Stick Aerial
• Hondex HDX 121 CMAP BB Plotter MS Monitor
• Time O MAX SEA – MS Monitor
• Icom Class B Transponder MA – 510 TH AIS
• Simrad A20 – 04 Auto Pilot – Furuno Rudder angle & AC 70 Simrad Computer System
• Fusion MS – RA70NSX Stereo System - Speakers
• Galaxy Camera System – MS Monitor
• MS Mark Track Easy Button
• TRITON CLS Black Box
• Star Link
• MS Watch Alarm
• Data 1 & 2 Switch Box
• Simrad Lawrence BB – GG Flux Gate/Compass Safety Distance

Engine

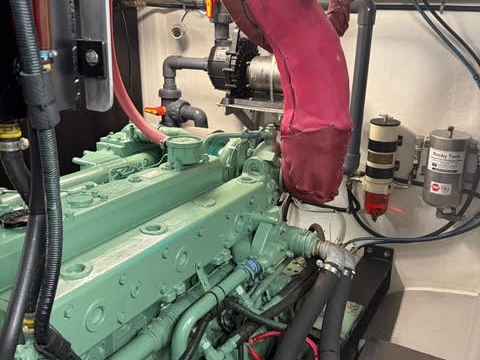

• Make 2022 Doosan Turbo Charge Diesel
• Model L12TIH
• S/N # 185938
• Horsepower 360 HP 1950 RPM’S
• Engine Hours 3832 Time of Survey
• Cooling System 2”Galvanized Run
• Exhaust Steel/Stainless Steel Muffler
• History: Engine oil changed 175 – 200 hours

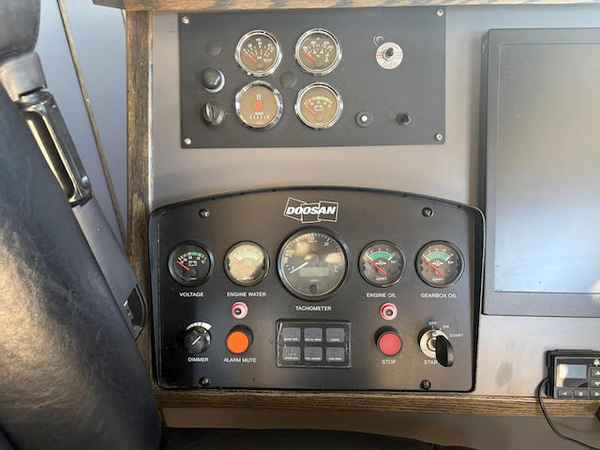

• Comments: Engine has an alarm system installed in wheelhouse to monitor oil pressure,
• voltage, temperature, and water temperature

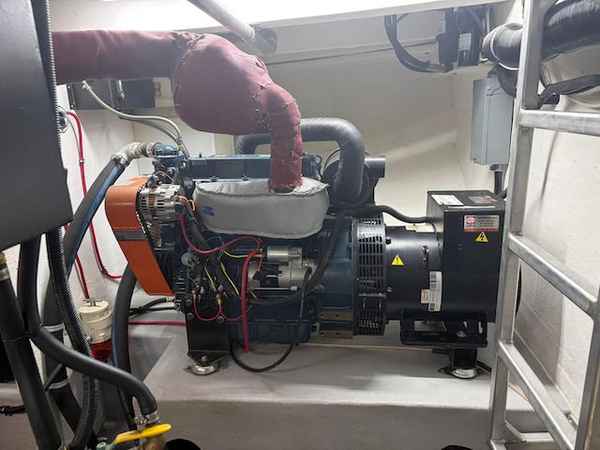

Genset

• Make Kubota V3300 - S/N 2MU4470
• 36 KW – 1800 RPMS
• Generator: Sansom 249SKNS – 3M1 – K
• 24.9 KW/KVA - 60 HZ – 1800 RPMS
• 120/240 volts
• Cooling pipes
• Small marine battery

Cuddy

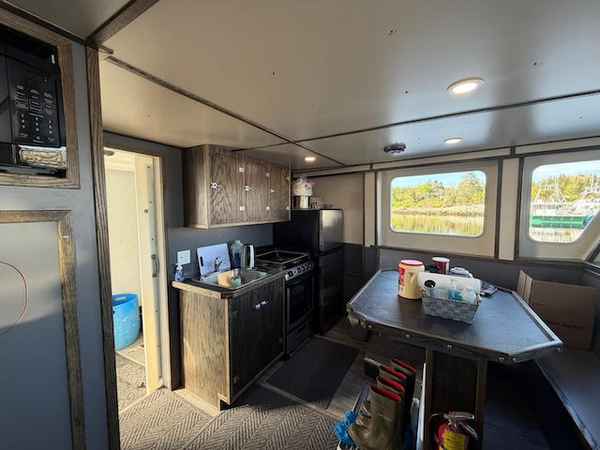

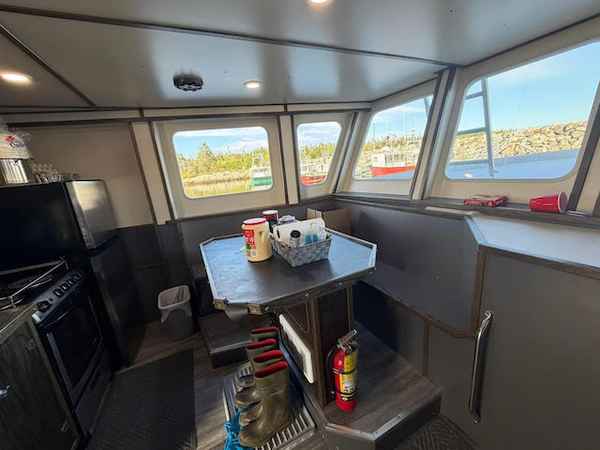

• Galley in wheelhouse with cupboards, lockers, sink, table & appliances
• Bunks, storage lockers in bow, Bomar escape, lights/plug outlets in forecastle
• Wheelhouse over engine room, dual entry through slaughterhouse
• Galley in wheelhouse with cupboards, lockers, sink, table, & appliances
• Appliances: GE 4 burner electric stove with oven
• GE refrigerator
• Danby microwave
• Other small appliances

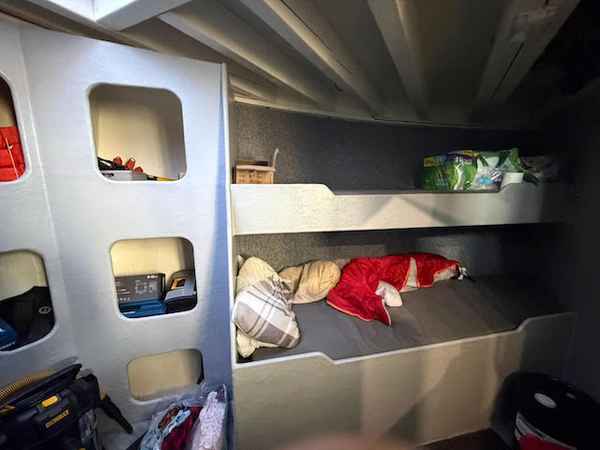

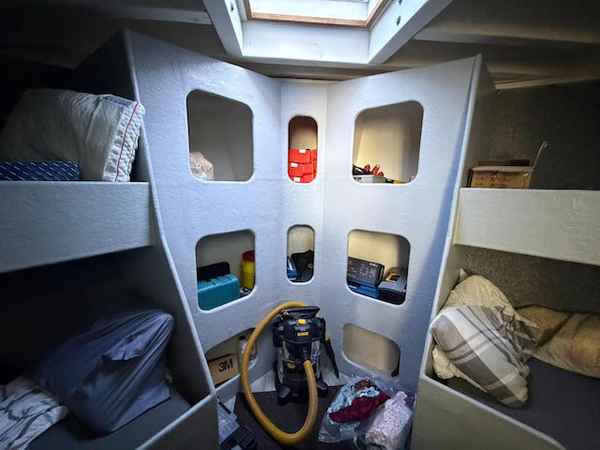

• Forecastle: 4 bunks
• Storage lockers – bow
• Bomar escape
• Lights & plug outlets
• Heating System: Bus heaters in forecastle & wheelhouse
• Propane System: No propane tanks aboard time of appraisal
• Comments: Accommodations appear comfortable & functional

Boat General

• 9kts
• Fish hold aft of engine room bulkhead – Pin boards
• Steering lazarette aft of engine room bulkhead – Fuel tanks port/starboard of double ram
• 3:50 ” Stainless Steel Shaft
• Drip Cutlass Bearing - Inside Stuffing Box
• Fiberglass Stern Tube - Bronze Steady Bearing
• 4 Blade Propeller - Galvanized Propeller Cage - Double Ram
• Steel with Stainless Steel Rudder Stock
• Hydro T Steering (Hydro Slave) Steering Gear
